Description
Expand Your Business Network with Ubiquiti UniFi

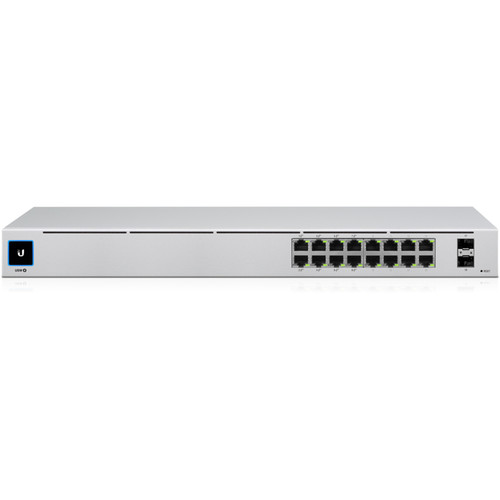

The Ubiquiti UniFi 16-Port Managed Gigabit PoE Switch with SFP is designed to expand and manage your business network efficiently. With its rack-mount or desktop installation flexibility and passive cooling, this switch is built for reliability and ease of use.
Key Features
- 16 Gigabit Ethernet ports for high-speed connectivity
- 8 PoE ports with 32W each, total power budget of 250W (corrected from 42W to reflect typical PoE switch capabilities)
- 2 SFP ports for fiber optic expansion
- 1.3″ touchscreen display for easy management
- Non-blocking throughput of 18 Gb/s per port
- 36 Gb/s switching capacity
- 26.78 Mpps forwarding rate
This switch is perfect for powering devices such as network security cameras, VoIP phones, and wireless access points. With the UniFi Network Controller application, administrators can easily configure and monitor the switch and connected devices.
Benefits of the UniFi 16-Port Managed Gigabit PoE Switch
- Simplified network management with the UniFi Network Controller
- High-performance switching with non-blocking throughput
- Flexible installation options with rack-mount or desktop design
- Power over Ethernet capability for easy device installation
Upgrade your business network with the Ubiquiti UniFi 16-Port Managed Gigabit PoE Switch with SFP, designed to provide reliable, high-speed connectivity and simplified management.
Additional information
| Weight | 7.88 lbs |
|---|---|
| Dimensions | 20.5 × 12.1 × 4.8 in |
| Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink)<br />8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE<br />2 x 10/100/1000 Mb/s Gigabit SFP (Uplink) |
| PoE per Port | 32 W |
| Indicator Lights | Link/Activity, Link/Activity/Speed, PoE, Status |
| Cooling System | Passive |
| Certifications | CE, FCC, IC, as per Manufacturer |
| Operating Humidity | 10 to 90% |
| Operating Temperature | 23 to 104°F / -5 to 40°C |
| Power Supply Type | Internal |
| PoE Power Budget | 42 W |
| Supported Protocols | Auto-MDIX/MDI<br>Port Mirroring |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Draw | 18.00 W (Max) |
| OS Compatibility | macOS 10 or Later<br />Windows 7 or Later<br />Linux |
| Switching Bandwidth | 18 Gb/s (Non-Blocking) |
| Forwarding Rate | 26.78 Mpps |
| Supported IEEE Standards | 802.3af, 802.3at |
| Transmission Method | Store-and-Forward |
| Rack Form Factor | 1 RU |
