Description
Elevate Your Gaming Experience with MSI MPG B550I

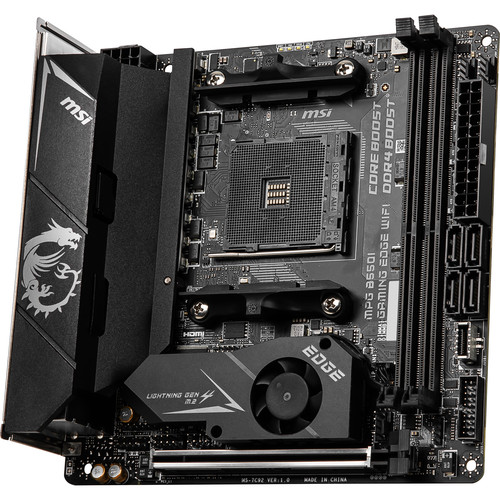

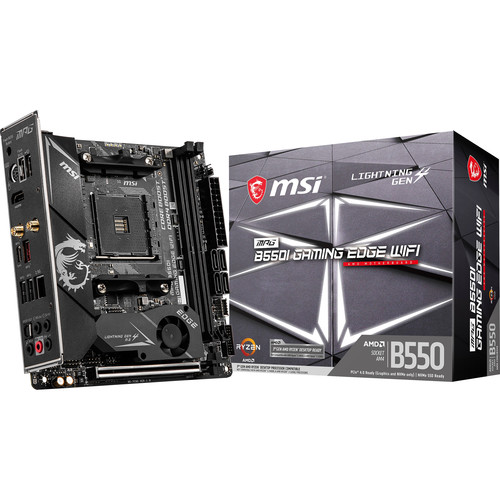

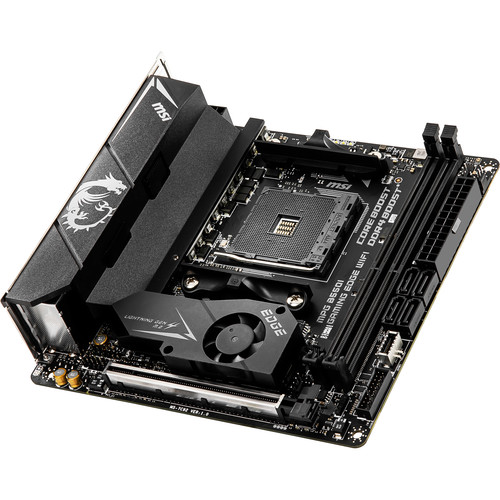

Design a powerful, compact gaming PC with the MSI MPG B550I Gaming Edge WIFI AM4 Mini-ITX Motherboard. This mini-ITX motherboard is perfect for builders who want to focus on high-performance gaming components while enjoying the benefits of a smaller form factor.
Key Features:
- AM4 Socket & B550 Chipset: Compatible with AMD Ryzen processors for exceptional performance.
- Dual-Channel DDR4 Memory: Two memory slots for efficient multitasking and gaming.
- High-Speed Storage: Four SATA III ports and two M.2 slots for fast storage options.
- PCIe 4.0/3.0 x16 Slot: Supports high-performance graphics cards for immersive gaming.
- Wi-Fi 6 & Bluetooth 5.1: Enjoy wireless connectivity and seamless device pairing.
- RGB Headers: Customize your build with vibrant RGB lighting.
- Advanced Cooling Options: Supports fan and liquid-cooling systems for optimal performance.
This motherboard is designed to deliver a superior gaming experience with its advanced features and compact design. With Wi-Fi 6 (802.11ax) and Bluetooth 5.1, you can enjoy wireless connectivity and connect your devices without the clutter of cables. The RGB headers allow you to personalize your build with a unique style.
The MSI MPG B550I Gaming Edge WIFI is compatible with Windows 10 (64-bit) operating systems, ensuring a smooth and efficient computing experience. Upgrade your gaming setup with this powerful and feature-rich mini-ITX motherboard.
Additional information
| Weight | 2.27 lbs |
|---|---|
| Dimensions | 9.1 × 7.65 × 3.3 in |
| Chipset | AMD B550 |
| RAID Support | RAID 0, 1, 10 (SATA)<br />RAID 0, 1 (M.2) |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Module Support | 1 E Key M.2 |
| Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
| Bluetooth | 5.1 |
| Audio Codec | Realtek ALC1200 (7.1-Channel) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| Diagnostics | Clear CMOS |
| LED Header | 1 x RGB |
| Security | Chassis Intrusion |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />1 x 4-Pin System |
| Multi-GPU Support | None |
| Expansion Slots | 1 x PCIe 4.0 x16 |
| Optane Memory Support | No |
| CPU Socket | AM4 |
| Buttons | BIOS Flashback |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />1 x USB 2.0 Header (Supports 2 USB Type-A Port) |
| Thunderbolt | None |
| Display | 1 x HDMI 2.1Output |
| Ethernet / Controller | 1 x 2.5Gigabit |
| PS/2 | 1 x Combo |
| Wi-Fi Antenna | 2 x Connector |
| Memory Slots | 2 x 288-Pin |
| U.2 | None |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4466, 4600 MHz |
| Maximum Capacity | 64 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 4 x SATA III |
| M.2 | 1 x M Key 2260, 2280 (PCIe 4.0 x4, PCIe 3.0 x4)<br />1 x M Key 2280 (PCIe 3.0 x4) |
| Form Factor | Mini-ITX |
