Description
Expand Your Workspace with IOGEAR’s USB-C Triple Video Docking Station
Transform your USB Type-C or Thunderbolt 3 laptop into a fully equipped workstation with the IOGEAR USB Type-C Triple Video Docking Station with 60W Power Delivery. This powerful docking station offers 11 versatile ports to connect multiple displays, storage devices, printers, and more, using the included 3.3′ USB Type-C cable.
Key Features:

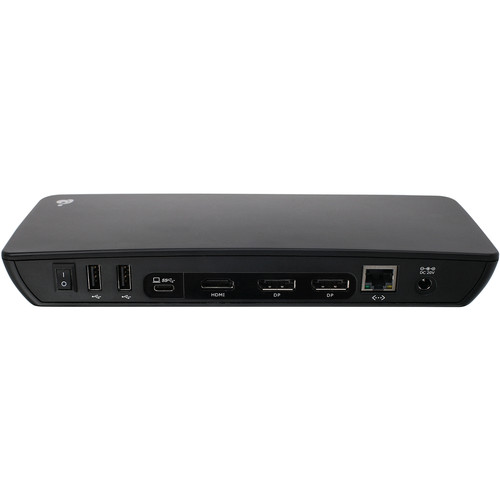

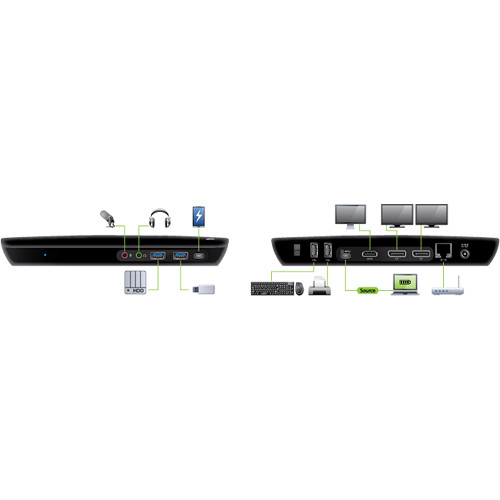

- 11 ports for expanded connectivity: USB-C, USB-A, DisplayPort, HDMI, Ethernet, and audio jacks

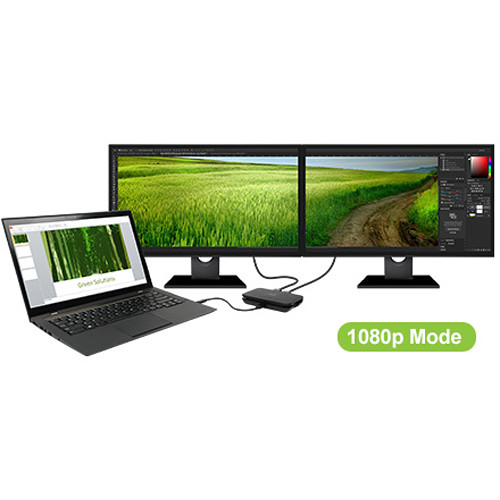

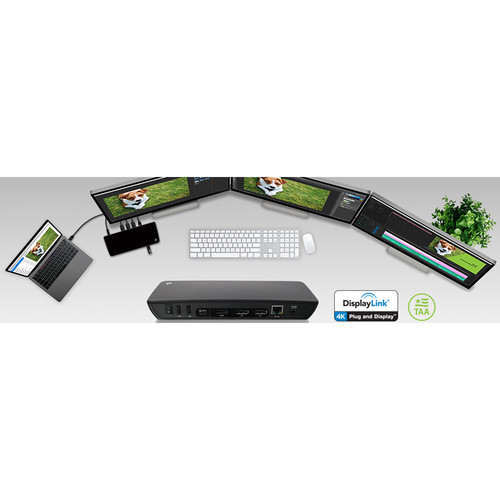

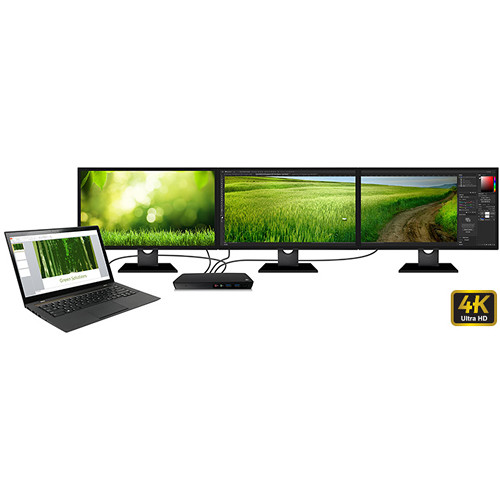

- Triple display support: Drive up to three displays simultaneously with DisplayPort 1.2 and HDMI outputs
- 60W Power Delivery: Charge your laptop while connected
- Fast data transfer: USB 3.1 Gen 1 ports for speedy data transfer
- Compatibility: Supports Mac OS X 10.7+ and Windows 10, 8.1, 8, and 7
This docking station connects via USB 3.1 Gen 1 Type-C, providing up to 60W of pass-through power. The included ports allow you to connect a variety of devices, from displays and external hard drives to printers and network connectivity. The dual DisplayPort 1.2 outputs and single HDMI port support high resolutions, making it ideal for multitasking and productivity.

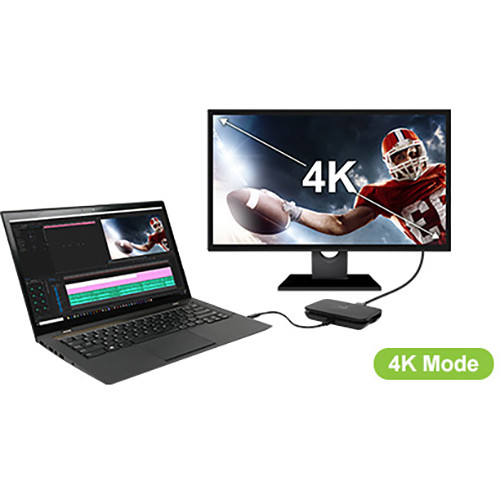

With support for DP Alt mode, you can use all three video outputs simultaneously to drive one 4K display at 30 Hz or configure multiple displays for extended or mirrored setups. The dock is powered by a 120W AC adapter and is backed by a limited 1-year warranty, ensuring reliable performance and protection for your investment.
Upgrade your workspace with the IOGEAR USB Type-C Triple Video Docking Station and enjoy enhanced productivity and flexibility.
Additional information
| Weight | 2.9 lbs |
|---|---|
| Dimensions | 11.9 × 5.5 × 3.4 in |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Type-C<br />2 x USB 3.1 / USB 3.2 Gen 1 Type-A<br />2 x USB 2.0 Type-A |
| Maximum Resolution Supported | 3840 x 2160 at 60 Hz (Triple Display)<br />3840 x 2160 at 60 Hz (Dual Display)<br />3840 x 2160 at 30 Hz (Single Display)<br />4096 x 2160 at 60 Hz (Single Display) |
| Cable Length | 3.3' / 1.01 m |
| DC Input Power | 20 VDC |
| Total Current Output | 4 A |
| Maximum Power Consumption | 60 W (AC Adapter) |
| Power Port | Barrel Connector (Unspecified Diameter) |
| Power Source | AC Adapter |
| UASP Support | No |
| Operating System Support | Windows, macOS/OS X |
| Number of Displays Supported | 3 |
| Thunderbolt | None |
| Interface Max Data Rate | 5 Gb/s |
| Connection Type | Detachable Cable |
| System Connection | 1 x USB 3.1 / USB 3.2 Gen 1 Type-C Female |
| Memory Card Slots | None |
| Audio | 1 x 1/8" / 3.5 mm Line-In<br />1 x 1/8" / 3.5 mm Line-Out |
| Display | 2 x DisplayPort (Female)<br />1 x HDMI (Female) |
| FireWire | None |
| Ethernet | 1 x RJ45 (10/100/1000 Mb/s) |
| Lock Slot | No |
