Description

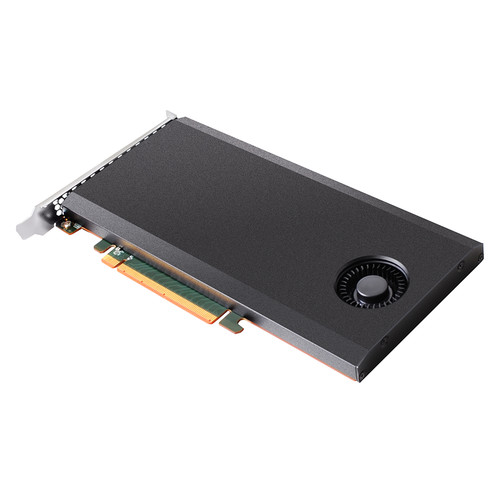

Unlock Unparalleled Performance with HighPoint’s 2nd Generation Bootable 4x M.2 NVMe RAID Controller
Upgrade your Intel-based or AMD X399 desktop, server, or workstation with the HighPoint 2nd Generation Bootable 4x M.2 NVMe RAID Controller, designed to replace the SSD7102. This cutting-edge RAID controller fits into a dedicated PCIe 3.0 x16 slot, unleashing transfer speeds of up to 14,000 Mb/s.
Key Features:
- Supports up to four M.2 NVMe SSDs for maximum storage capacity and performance.
- Delivers up to 14,000 Mb/s transfer performance for demanding applications.
- Compatible with Intel-based and AMD X399 systems for broad compatibility.
- Operates in single-drive or RAID modes, supporting multiple boot volumes.
- Designed for PCIe 3.0 x16 slot, ensuring high-speed data transfer.
This RAID controller is perfect for professionals and enthusiasts seeking to maximize their storage performance. Whether you’re running high-end applications, managing large datasets, or simply looking to future-proof your system, the HighPoint 2nd Generation Bootable 4x M.2 NVMe RAID Controller offers the speed, flexibility, and reliability you need.
With support for up to four individual boot volumes and various RAID configurations, this controller provides the versatility required for diverse computing environments. Experience the pinnacle of storage performance and take your system to the next level with HighPoint’s innovative RAID technology.
Additional information
| Weight | 1.37 lbs |
|---|---|
| Dimensions | 13.3 × 7.7 × 2.8 in |
| Bus Interface | PCI-Express 3.0 x16 |
| Alarm Buzzer | Yes |
| Certifications | CE, FCC, RoHS, REACH, WEEE |
| MTBF | 920, 585 Hours |
| Power | Typical: 8 W |
| Operating Voltage | PCIe: 12 V, 3.3 V |
| Storage Temperature | -4 to 176°F / -20 to 80°C |
| Operating Temperature | 41 to 131°F / 5 to 55°C |
| RAID Configuration | Automatic and Configurable RAID Rebuilding Priority<br> |
| NVMe SMART Status | Yes |
| Storage Health Inspector | Yes |
| SMTP Email Alert Notification | Yes |
| Number of Channels / Ports | 4 x M.2 NVMe Ports (Dedicated PCIe 3.0 x4 Per Port) |
| Management | Browser-Based Management Tool<br> |
| Storage Mode | UEFI Bootable and Data RAID |
| TRIM RAID Support | UEFI Bootable and Data RAID |
| RAID Support | Legacy, RAID 0, RAID 1, RAID 1/0 |
| Cooling | Aluminum Casing with Single 50 x 50 mm Cooling Fan |
| Operating System Support | Windows 10, Windows Server 2012 R2 or Later, Linux Kernel 3.3 or Later, Microsoft Hyper-V, Xen Server |
| Form Factor | Full Height (2242, 2260, 2280, 22110) |
| Number of Devices | 4 x M.2 NVMe SSD |
| Transfer Rate | 14, 000 MB/s |
| Data Transfer Rate | 8 GT Per Lane / 8 Gb/s Per Lane |
| Auto | Resume Incomplete Rebuilding After |
