Description

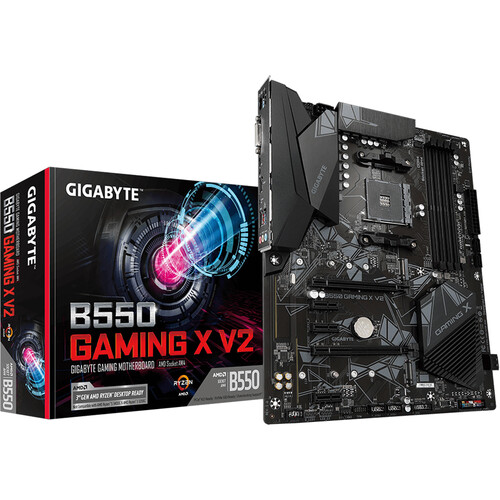

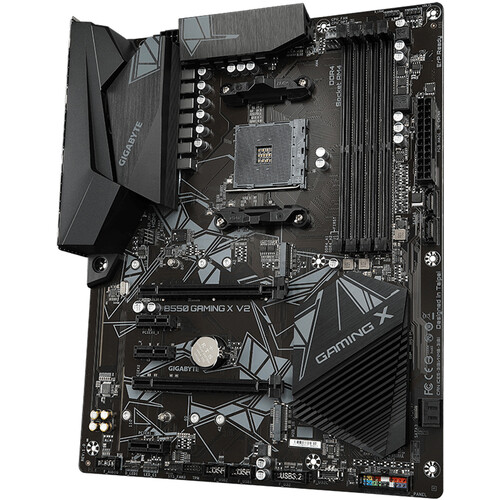

GIGABYTE B550 Gaming X V2 AM4 ATX Motherboard: Elevate Your Gaming Experience
Get ready to power your gaming rig with the GIGABYTE B550 Gaming X V2 AM4 ATX Motherboard, designed to deliver robust performance at an affordable price. Ideal for gaming enthusiasts, this motherboard offers the perfect blend of basic connectivity and advanced functionality without compromising on performance.

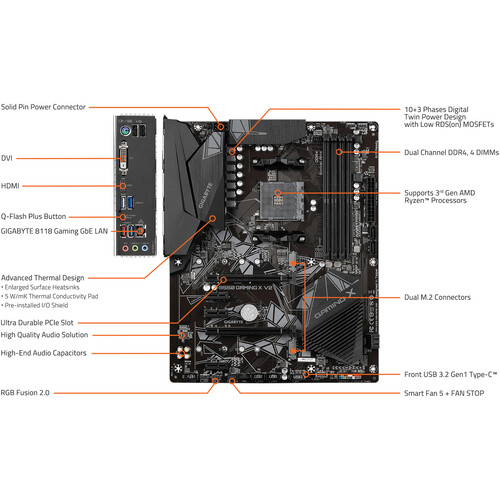

Key Features:
- AM4 Socket: Compatible with a wide range of Ryzen processors, giving you the flexibility to choose your ideal CPU.
- DDR4 Memory Support: Install up to 128GB of DDR4 RAM with speeds up to 4400 (O.C.) MHz for seamless multitasking.
- Advanced Storage Options: Four SATA III and two M.2 connections allow for versatile storage configurations.
- PCIe Connectivity: One PCIe 4.0 x16, one PCIe 3.0 x16, and three PCIe 3.0 x1 slots for graphics cards and utility cards.

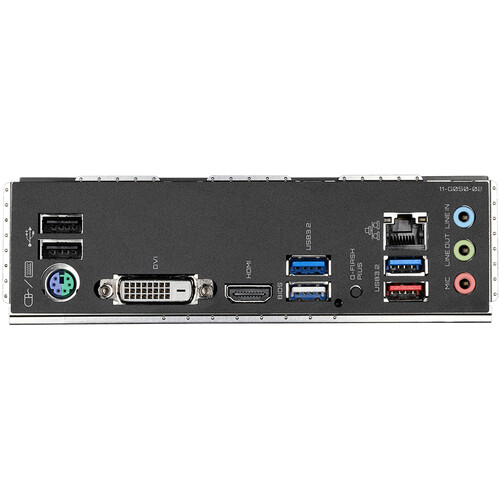

- High-Speed USB Ports: USB 3.2 Gen 1 and Gen 2 ports and headers for fast peripherals, alongside USB 2.0 for low-demand accessories.
- Gigabit Ethernet: Stay connected with a reliable Gigabit Ethernet port, essential for competitive online gaming.
This motherboard is engineered to provide a solid foundation for your gaming PC, ensuring that you can enjoy your favorite games with minimal lag and maximum performance. With its comprehensive feature set and compatibility with the latest Ryzen processors, the GIGABYTE B550 Gaming X V2 is an excellent choice for gamers looking to build or upgrade their system.
Whether you’re diving into intense gaming sessions or multitasking across various applications, this motherboard is designed to keep up with your demands, providing a stable and high-performance computing experience.
Additional information
| Weight | 3.32 lbs |
|---|---|
| Dimensions | 13.3 × 10.7 × 3.2 in |
| Chipset | AMD B550 |
| U.2 | None |
| Supported Operating Systems | Windows 10 (64-Bit) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| ROM | 256 Mb |
| Diagnostics | Clear CMOS |
| LED Header | 5 x RGB |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 4-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />3 x 4-Pin System |
| Multi-GPU Support | None |
| Expansion Slots | 1 x PCIe 4.0 x16<br />1 x PCIe 3.0 x16 (x2 mode)<br />3 x PCIe 3.0 x1 |
| RAID Support | RAID 0, 1, 10 |
| Optane Memory Support | No |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, PCIe 3.0 x4, PCIe 3.0 x2)<br />1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4) |
| CPU Socket | AM4 |
| SATA | 4 x SATA III |
| ECC Support | Non-ECC, ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4400, 4600, 4733 MHz |
| Memory Slots | 4 x 288-Pin |
| Buttons | BIOS Flashback |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 |
| Audio | 1 x Speaker |
| Display | 1 x DVI-D <br />1 x HDMI 2.1 |
| Thunderbolt | None |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
